Precast SupFRP 2mm Elements High Precast Various Shapes Fairly Light Anti-Corrosion Fiberglass Concrete Rebar

100.0 meters
MOQ
Precast SupFRP 2mm Elements High Precast Various Shapes Fairly Light Anti-Corrosion Fiberglass Concrete Rebar
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: D2
Application: Precast elements
Surface Treatment: Anti-corrosion
Technique: Pultrusion
Processing Service: Cutting
Diameter(mm): 2
Tensile load (kN): 3
Weight (kg/m): 0.007
Cross sectional area (mm2): 3
Ultimate Strain: 2.0%
Bending E-Modulus (GPa): 50
Material: Carbon fiber + resin
Tensile strength (MPa): 1000
Length (m): (1) x2, x3, x4, x5, x6, x7, x8, x9, x10, x11, x12
Color: Natural
Información básica
Model Number: D2
Pago y Envío Términos
Packaging Details: Packed in bundles or pallets.
Supply Ability: 1000000 Meter/Meters per Month
Descripción de producto

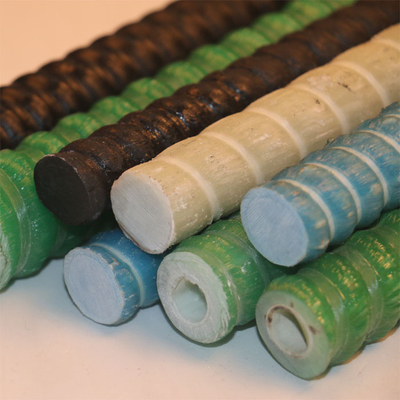

SupFRP 2mm pretty light weight high anti-corrosion various shapes fiberglass concrete rebar

Features

CFRP Reinforcement Rebar is developed as a good alternative product for concrete internal reinforcement. The SupFRP® CFRP Reinforcement Rebar is made of high quality corrosion resistant resin and glass fiber materials. The GFRP Reinforcement Rebar can be produced into various shapes in factory. Glass Rebar is an outstanding product for concrete reinforcement. It weighs 4 times less than steel rebar and its tensile strength is 3 times higher.

Applications

1. Infrastructural Buildings

2. Bridge decks

3. Sea walls

4. Port aprons

5. Precast elements

6. Foundations

7. Industrial Plants

8. Soft-eye excavation

Advantages

1. High corrosion resistance for permanent application

2. Excellent bonding with concrete

3. High tensile strength

4. Non-conductive

5. Non-magnetic

6. Easy cutting-Cost-effective

7. Wide range of shapes

8. Easy handling

Technical Data

GFRP Bolt D2 D3 D4 D6
Outside Diameter (mm) 2 3 4 6
Tensile Load (kN) 3 7.2 13 30
Nominal Cross Sectional Area (mm2) 3 7 12 28
Tensile Strength (MPa) 1000 1000 1000 1000
Ultimate Strain 2.0%
Tensile E-Modulus (GPa) 50
Material Type Glass Fiber Reinforced Polymer
Weight (kg/m) 0.007 0..015 0.027 0.06
